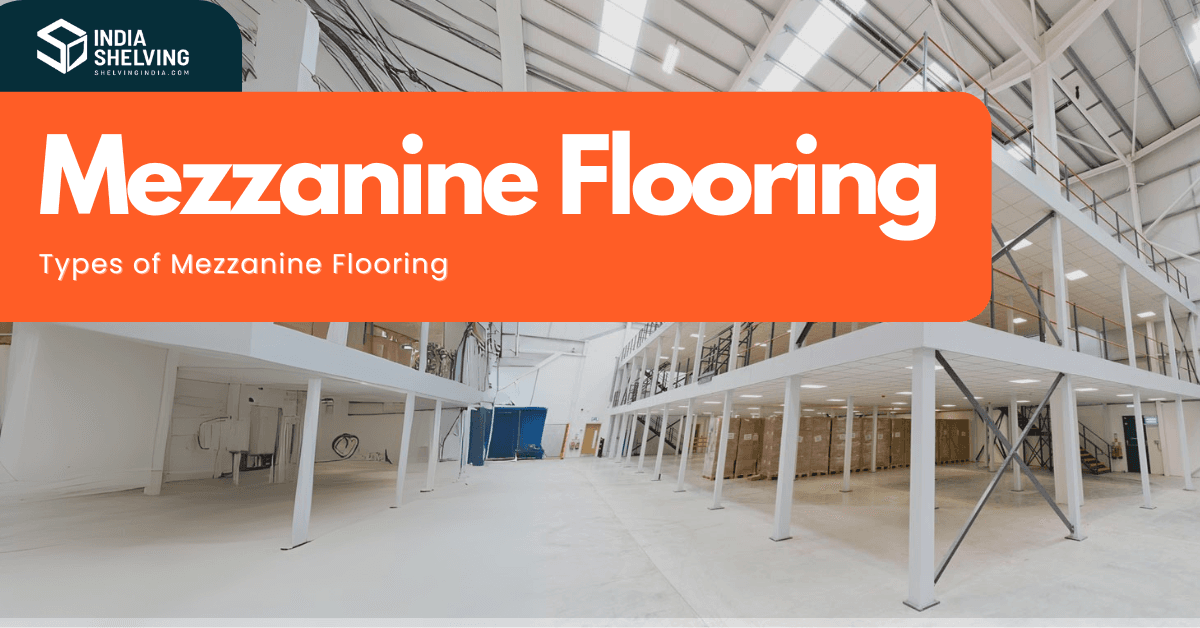

Types of Mezzanine Flooring
Maximizing vertical space with mezzanine floors requires choosing the right flooring material for durability, safety, and cost-effectiveness. This comprehensive guide explores the most popular mezzanine flooring types, their benefits, ideal applications, and key considerations to help facility managers and architects make informed decisions for their next project.
Particle board mezzanine flooring installed in a warehouse with red safety handrails and metal support structure.
Modern mezzanine floors represent a strategic solution for space optimization, offering up to double the usable floor area without the expense of relocating or expanding facilities. The choice of flooring material fundamentally determines the mezzanine’s performance, safety profile, and long-term value. With load capacities ranging from 300 kg/m² for light office use to over 4,000 kg/m² for heavy industrial applications, selecting the appropriate flooring type ensures both operational efficiency and regulatory compliance.
High-Density Particle Board: The Industry Standard
Particle board remains the go-to choice for approximately 90% of mezzanine installations due to its versatility and cost-effectiveness. Manufactured from fine timber particles bonded with high-strength resins under pressure, 38mm tongue-and-groove panels deliver reliable performance across diverse applications.
Technical Specifications and Performance
Standard particle board mezzanine flooring offers impressive structural capabilities with load capacities ranging from 300-500 kg/m². The tongue-and-groove configuration ensures seamless installation while providing structural continuity across panel joints. High-density variants can handle medium to high point loads, making them suitable for warehouse operations involving pallet jacks and moderate equipment loads.
Particle board mezzanine flooring installed in a warehouse, featuring a safety railing and access gate for a secure and practical elevated platform.
Enhanced Treatment Options
Modern particle board systems offer optional enhancements to address specific environmental challenges. Moisture-resistant treatments protect against humidity and spills, particularly valuable in warehouse environments where condensation may occur. Fire-resistant foil applications to the underside prevent flame spread, ensuring compliance with building safety regulations. Anti-slip surface coatings provide additional safety in high-traffic areas, while maintaining the smooth finish required for wheeled equipment operation.
Applications and Cost Benefits
The versatility of particle board makes it ideal for office partitions, light to medium storage areas, and retail display platforms. Major implementations include automotive manufacturing facilities, charitable processing centers, and garment storage operations. With installation costs typically ranging £15-25/m², particle board offers exceptional value for projects prioritizing economy without sacrificing functionality.
Steel Flooring Systems: Maximum Durability
Steel flooring systems represent the premium choice for demanding industrial environments, offering exceptional strength and longevity that justifies higher initial investment costs.
Durbar Plate: Anti-Slip Excellence
Durbar plate features a distinctive diamond-pattern raised stud surface that provides superior slip resistance in both dry and wet conditions. Manufacturing by Tata Steel ensures consistent quality with studs that are 23% deeper and 10% more numerous than generic alternatives, delivering proven safety performance backed by independent laboratory testing.
Close-up of steel durbar plate mezzanine flooring showcasing its anti-slip diamond pattern for safety and durability.
The structural properties of durbar plate eliminate the need for separate structural and flooring components, reducing overall construction costs despite higher material prices. Heat resistance up to 500°C makes it ideal for high-temperature environments, while the self-draining surface design facilitates easy cleaning and reduces maintenance requirements.
Steel Bar Grating: Ventilation and Safety
Open-grid bar grating systems allow light, air, and fire suppression water to pass through while supporting substantial loads.
Steel bar grating mezzanine flooring with open-grid metal mesh for ventilation and heavy load support in industrial storage.
The 1″ x 1/8″ standard configuration provides nominal 1″ x 4″ openings that facilitate sprinkler system effectiveness while maintaining structural integrity for load capacities between 500-1,500 kg/m².
Bar grating excels in applications requiring ventilation, such as chemical processing facilities, mechanical rooms, and platforms above sensitive equipment. The open design prevents heat buildup while enabling visual inspection of systems below. However, the surface is unsuitable for pallet jack operations due to the grid structure.
Composite Flooring Solutions: Advanced Engineering
Composite systems like ResinDek represent cutting-edge mezzanine flooring technology, combining engineered wood substrates with advanced resin coatings to create panels capable of supporting heavy rolling loads and robotic traffic.
ResinDek Performance Characteristics
ResinDek panels deliver exceptional point load capacity, supporting up to 3,600 kg (8,000 lbs) while accommodating mobile robots weighing 500-2,700 kg (1,100-6,000 lbs). The tongue-and-groove configuration promotes effective load transfer between panels, while the smooth, sealed surface reduces worker fatigue and equipment wear.
ResinDek composite mezzanine flooring system showing lightweight panels that reduce structural steel and footing requirements.
The electron beam curing process creates an incredibly durable surface coating engineered for specific traffic types. Gray Diamond Seal coating provides standard durability for pallet jack operations, while specialized ESD (Electrostatic Discharge) variants protect sensitive electronic equipment. MetaGard surfaces offer enhanced wear resistance for robotic applications.
Environmental and Cost Benefits
ResinDek panels contribute to LEED qualification through formaldehyde-free construction and sustainable manufacturing practices. Independent cost studies demonstrate up to 34% savings compared to concrete alternatives, primarily through reduced structural steel requirements and faster installation times.
The 10-year product warranty provides long-term value assurance, while the ability to span greater distances between support beams reduces overall structural costs [11] . Installation flexibility allows for custom panel sizes up to 4′ x 10′ (1219mm x 3048mm) to optimize structural efficiency.
Concrete Flooring Systems: Ultimate Capacity
Concrete mezzanine floors provide maximum load capacity and longevity for the most demanding applications, supporting over 4,000 kg/m² while offering superior fire resistance and acoustic properties.
Construction Methods and Benefits
Concrete systems typically employ cast-in-place slabs over steel decking profiles such as HiBond or ComFlor. The composite action between steel and concrete creates exceptional structural performance while the steel framework provides rapid construction capabilities.
Workers pouring and finishing a concrete slab over steel decking for mezzanine floor construction in a warehouse.
The construction process begins with steel structure installation, followed by corrugated deck placement, reinforcement positioning, and concrete pouring. Fire rating requirements apply only to supporting steel elements, typically achieved through intumescent paint or fire-rated encasement.
Performance Advantages
Concrete floors excel in noise reduction, providing superior acoustic isolation between levels compared to other flooring materials. The thermal mass characteristics help regulate temperature fluctuations while the monolithic surface requires minimal maintenance over decades of service.
Load capacities exceeding 4,000 kg/m² accommodate heavy machinery, dense storage, and high-traffic operations. The fire resistance inherent in concrete eliminates many safety concerns while providing structural stability in extreme conditions.
Mezzanine Flooring Types Comparison: Load Capacity, Applications, and Cost Analysis
Specialized Flooring Options
Several specialized flooring systems address unique environmental challenges and specific performance requirements.
Glass Reinforced Plastic (GRP) Panels
GRP panels combine lightweight construction with exceptional chemical resistance and slip prevention properties. Available in thicknesses from 3-10mm, these panels feature anti-slip surfaces created through embedded silica grains that maintain effectiveness even in wet conditions.
Close-up of a GRP fiberglass anti-slip panel with pebble texture, ideal for mezzanine flooring requiring safety and corrosion resistance.
The corrosion resistance makes GRP ideal for chemical processing facilities, marine environments, and outdoor installations. Load capacities of 500-800 kg/m² accommodate moderate storage and foot traffic while the non-conductive properties provide electrical safety in sensitive environments.
Cement Fiber Boards
Cement fiber boards offer exceptional fire, moisture, and termite resistance through high-pressure steam curing (HPSC) manufacturing. The combination of cement, cellulose fibers, and additives creates panels capable of withstanding heavy loads while maintaining dimensional stability.
Fiber cement boards installed over steel framework for mezzanine flooring showcasing a fire- and moisture-resistant construction material.
Installation over steel grid structures with 610mm x 610mm spacing provides adequate support for normal loads, while 400mm x 400mm spacing accommodates heavier applications. The 18mm standard thickness offers excellent strength-to-weight ratios for mezzanine applications.
Selection Criteria and Decision Framework
Load Capacity Comparison of Mezzanine Flooring Materials (kg/m²)
Choosing the optimal mezzanine flooring requires systematic evaluation of multiple factors that impact both performance and total cost of ownership.
Load Requirements Analysis
Understanding both distributed and point loads determines minimum flooring specifications. Office applications typically require 350-480 kg/m², while industrial storage may demand 1,500 kg/m² or higher. Dynamic loads from equipment movement must be considered alongside static storage loads.
Environmental Conditions
Moisture exposure, chemical compatibility, and temperature ranges influence material selection. Indoor controlled environments favor particle board, while outdoor or corrosive conditions require steel or GRP alternatives. Fire resistance requirements may mandate specific treatments or materials.
Economic Considerations
Initial installation costs must be balanced against lifecycle expenses including maintenance, replacement, and operational impacts. Particle board offers lowest upfront costs but may require more frequent maintenance, while steel systems provide decades of service with minimal upkeep.
Safety and Compliance
Building codes mandate specific fire ratings, load capacities, and safety features. Anti-slip treatments may be required for high-traffic areas, while fire resistance ratings ensure regulatory compliance and occupant protection.
Safety Standards and Building Regulations
Mezzanine floor installations must comply with comprehensive safety standards that protect occupants and ensure structural integrity throughout the service life.
Fire Safety Requirements
Building regulations require fire resistance ratings based on mezzanine size and occupancy. Floors exceeding 400m² area, 50% of room footprint, or accommodating more than three occupants typically require one-hour fire protection.
Fire protection implementation includes suspended ceilings with fire-rated tiles, column encasement, and protective fascias on exposed edges. Intumescent coatings or fire-rated enclosures protect structural steel elements while maintaining aesthetic appeal.
Load Capacity Compliance
Structural design must conform to British Standard BS6399 for loading requirements and BS5950 for steelwork design. Professional engineering calculations ensure adequate safety factors for both distributed and concentrated loads while accounting for dynamic effects from equipment operation.
Access and Fall Protection
OSHA and IBC regulations mandate appropriate guardrails, handrails, and egress provisions. Guardrail heights, loading requirements, and spacing specifications ensure occupant safety while emergency egress provisions enable safe evacuation.
Conclusion
The selection of mezzanine flooring material fundamentally determines project success, impacting safety, performance, and long-term value. Particle board offers cost-effective versatility for standard applications, while steel systems provide maximum durability for demanding environments. Composite solutions bridge performance and economy for specialized requirements, and concrete delivers ultimate capacity for heavy-duty operations.
Successful flooring selection requires comprehensive evaluation of load requirements, environmental conditions, regulatory compliance, and lifecycle costs. Professional engineering analysis ensures optimal material selection while building code compliance protects occupants and assets. Whether prioritizing economy, performance, or specialized capabilities, the modern mezzanine flooring market offers solutions to maximize facility efficiency while maintaining safety and regulatory compliance.
The investment in appropriate flooring technology pays dividends through enhanced productivity, reduced maintenance costs, and extended service life. As facilities continue to demand greater efficiency from existing space, the strategic selection of mezzanine flooring becomes increasingly critical to operational success and competitive advantage.
